Fiber-optic cables are creeping nearer to processors in high-performance computer systems, changing copper connections with glass. Know-how firms hope to hurry up AI and decrease its power price by transferring optical connections from outdoors the server onto the motherboard after which having them sidle up alongside the processor. Now tech corporations are poised to go even additional within the quest to multiply the processor’s potential—by slipping the connections beneath it.
That’s the method taken by
Lightmatter, which claims to guide the pack with an interposer configured to make light-speed connections, not simply from processor to processor but in addition between elements of the processor. The expertise’s proponents declare it has the potential to lower the quantity of energy utilized in advanced computing considerably, a necessary requirement for in the present day’s AI expertise to progress.
Lightmatter’s improvements have attracted
the attention of investors, who’ve seen sufficient potential within the expertise to boost US $850 million for the corporate, launching it effectively forward of its rivals to a multi-unicorn valuation of $4.4 billion. Now Lightmatter is poised to get its expertise, referred to as Passage, operating. The corporate plans to have the manufacturing model of the expertise put in and operating in lead-customer methods by the top of 2025.
Passage, an optical interconnect system, could possibly be an important step to rising computation speeds of high-performance processors past the boundaries of Moore’s Legislation. The expertise heralds a future the place separate processors can pool their assets and work in synchrony on the massive computations required by artificial intelligence, based on CEO Nick Harris.
“Progress in computing to any extent further goes to come back from linking a number of chips collectively,” he says.
An Optical Interposer
Essentially, Passage is an interposer, a slice of glass or silicon upon which smaller silicon dies, typically referred to as chiplets, are hooked up and interconnected throughout the similar package deal. Many high server CPUs and GPUs today are composed of a number of silicon dies on interposers. The scheme permits designers to attach dies made with completely different manufacturing applied sciences and to extend the quantity of processing and reminiscence past what’s attainable with a single chip.
Right this moment, the interconnects that hyperlink chiplets on interposers are strictly electrical. They’re high-speed and low-energy hyperlinks in contrast with, say, these on a motherboard. However they will’t evaluate with the impedance-free move of photons by glass fibers.
Passage is reduce from a 300-millimeter wafer of silicon containing a skinny layer of silicon dioxide just under the floor. A multiband, exterior laser chip offers the sunshine Passage makes use of. The interposer incorporates expertise that may obtain an electrical sign from a chip’s customary I/O system, referred to as a serializer/deserializer, or SerDes. As such, Passage is appropriate with out-of-the-box silicon processor chips and requires no basic design modifications to the chip.

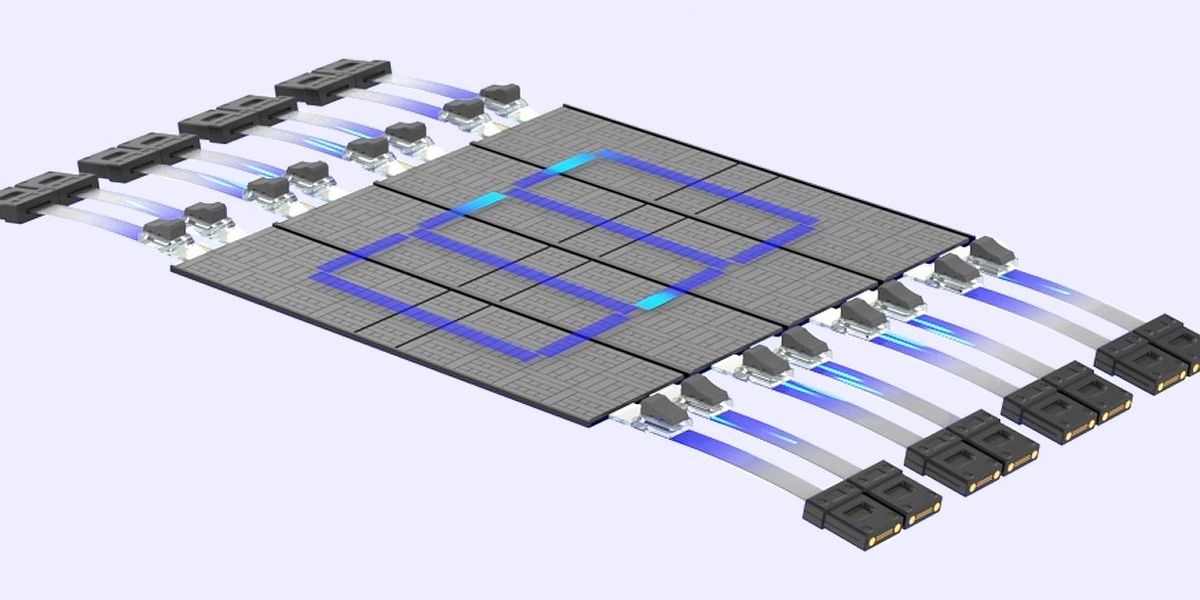

Computing chiplets are stacked atop the optical interposer. Lightmatter
From the SerDes, the sign travels to a set of transceivers referred to as
microring resonators, which encode bits onto laser gentle in numerous wavelengths. Subsequent, a multiplexer combines the sunshine wavelengths collectively onto an optical circuit, the place the info is routed by interferometers and extra ring resonators.
From the
optical circuit, the info will be despatched off the processor by one of many eight fiber arrays that line the alternative sides of the chip package deal. Or the info will be routed again up into one other chip in the identical processor. At both vacation spot, the method is run in reverse, wherein the sunshine is demultiplexed and translated again into electrical energy, utilizing a photodetector and a transimpedance amplifier.
Passage can allow an information middle to make use of between one-sixth and one-twentieth as a lotpower, Harris claims.
The direct connection between any chiplet in a processor removes latency and saves power in contrast with the everyday electrical association, which is usually restricted to what’s across the perimeter of a die.
That’s the place Passage diverges from different entrants within the race to hyperlink processors with gentle. Lightmatter’s rivals, equivalent to
Ayar Labs and Avicena, produce optical I/O chiplets designed to sit down within the restricted area beside the processor’s major die. Harris calls this method the “era 2.5” of optical interconnects, a step above the interconnects located outdoors the processor package deal on the motherboard.
Benefits of Optics
Some great benefits of photonic interconnects come from eradicating limitations inherent to electrical energy, which expends extra power the farther it should transfer information.
Photonic interconnect startups are constructed on the premise that these limitations should fall to ensure that future methods to fulfill the approaching computational calls for of synthetic intelligence. Many processors throughout an information middle might want to work on a job concurrently, Harris says. However transferring information between them over a number of meters with electrical energy could be “bodily not possible,” he provides, and likewise mind-bogglingly costly.
“The facility necessities are getting too excessive for what information facilities had been constructed for,” Harris continues. Passage can allow an information middle to make use of between one-sixth and one-twentieth as a lot power, with effectivity rising as the scale of the info middle grows, he claims. Nonetheless, the power financial savings that
photonic interconnects make attainable gained’t result in information facilities utilizing much less energy total, he says. As a substitute of scaling again power use, they’re extra more likely to eat the identical quantity of energy, solely on more-demanding duties.
AI Drives Optical Interconnects
Lightmatter’s coffers grew in October with a $400 million Sequence D fundraising spherical. The funding in optimized processor networking is a part of a development that has grow to be “inevitable,” says
James Sanders, an analyst at TechInsights.
In 2023, 10 % of servers shipped had been accelerated, that means they comprise CPUs paired with GPUs or different AI-accelerating ICs. These accelerators are the identical as those who Passage is designed to pair with. By 2029, TechInsights tasks, a 3rd of servers shipped can be accelerated. The cash being poured into photonic interconnects is a guess that they’re the accelerant wanted to revenue from AI.
