This yr, two firms—Santa Clara, California-based Anello Photonics and Montreal-based One Silicon Chip Photonics (OSCP)—have launched new gyroscope–on-a-chip navigation methods, permitting for exact heading and distance monitoring with out satellite tv for pc alerts.
Such inertial navigation is more and more vital at the moment, as a result of GPS is inclined to jamming and spoofing, which might disrupt navigation or present deceptive location knowledge. These issues have been well-documented in battle zones, together with Ukraine and the Middle East, the place navy operations have confronted vital GPS interference. For drones, which depend on GPS for positioning, the lack of sign might be catastrophic, leaving them unable to navigate and typically leading to crashes.
Optical gyroscopes have lengthy been seen instead navigation expertise to satellite-based international navigation systems. Bigger-sized items like ring-laser gyroscopes have been around for the reason that Seventies. Nevertheless, shrinking these gadgets all the way down to chip-size was far simpler stated than completed.
The optical gyroscopes produced beginning in the mid-1970s had difficulties sustaining the mandatory optical sign energy for exact rotation sensing. Shrinking them solely made the signal-to-noise ratio worse. So, as most microelectronic gadgets adopted the miniaturization pathway described by Moore’s Regulation, light-based gyroscopes remained massive, cumbersome, and energy hungry.
In the event you drive 100 kilometers, the system’s distance measurement might be correct to inside 100 meters, or 0.1 p.c of the space traveled.” —Mario Paniccia, Anello Photonics
That was the state of issues till Caltechelectrical engineering and medical engineering professor Ali Hajimiri and his group made a breakthrough that overcame earlier measurement and accuracy limitations. In a 2018 paper, they described how they created a solid-state gyroscope sufficiently small to suit on a grain of rice. Just like the optical gyroscopes that appeared earlier than it, this gyroscope leveraged the Sagnac effect, a precept first demonstrated in 1913 by French physicist Georges Sagnac.
The Sagnac impact happens when a beam of sunshine is break up into two and despatched in reverse instructions alongside a round path. If the system rotates, one beam reaches the detector forward of the opposite, permitting exact measurement of the rotation angle. As a result of this methodology doesn’t depend on exterior alerts, it’s resistant to electromagnetic interference, vibration, and cyberattacks by way of an open communication channel—making it a perfect answer for functions the place GPS is unreliable or fully denied.
By introducing a method for eliminating noise, Hajimiri and his colleagues have been capable of create an optical gyroscope that was one–5 hundredth the dimensions of commercially accessible fiber-optic gyroscopes and comparable by way of sensitivity.
This pocket-size, chip-based optical gyroscope from Anello Photonics is simply as correct as bulkier variations.Anello Photonics
Anello and OSCP Enter the Market
Lower than a decade after Hajimiri’s breakthrough, Anello Photonics and OSCP are actually trying to reshape the navigation market with their gyroscope-based methods. They’ve launched additional refinements that permit extra miniaturization with out diminishing the gyroscopes’ effectiveness. Anello’s low-loss silicon nitride waveguides permit mild to flow into longer throughout the gyroscope, bettering sign energy and lowering error accumulation. Anello’s methods additional suppress different noise sources, so a smaller waveguide holding much less mild—and subsequently a fainter sign—continues to be ample for correct rotation readings.

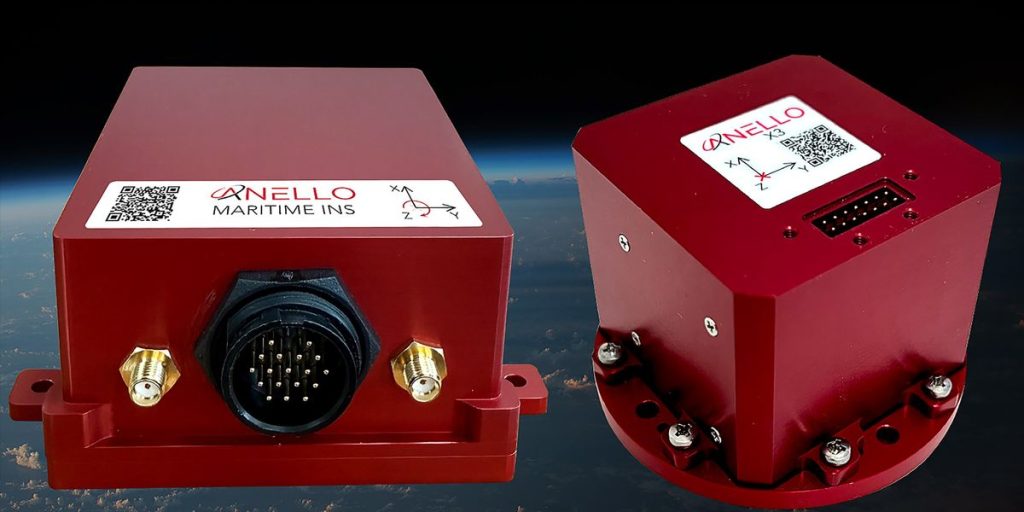

The end result, says Mario Paniccia, Anello CEO, was showcased at CES in 2024 and earlier this yr. Paniccia explains that his firm’s inertial measurement units (IMUs), which encompass three chip-based gyroscopes and extra parts, match within the palm of an individual’s hand. They ship excessive precision for a number of functions, together with agriculture, the place autonomous tractors should keep completely straight furrows for as much as 800 meters. Longer distances are additionally no downside for the navigation system, he says. “In the event you drive 100 kilometers,” says Paniccia, “the system’s distance measurement might be correct to inside 100 meters, or 0.1 p.c of the space traveled.”
OSCP can be making strides in miniaturized navigation expertise. At CES 2025, OSCP founder and CEO Kazem Zandi unveiled an upgraded multi-gyroscope IMU that’s half the dimensions of its predecessor. “It’s not solely smaller, but additionally extra energy environment friendly and cheaper,” stated Zandi on the Las Vegas–primarily based tech expo. “These gyroscopes can present lifeless reckoning with location accuracy to inside centimeters.”
Anello’s and OCSP’s IMUs are designed to work alongside GPS, continually monitoring location inputs. If GPS interference is detected, artificial intelligence (AI) inside both firm’s system routinely shifts navigation management to the gyroscopes. “If, for instance, you’re in New York,” explains Paniccia, “and the gyroscopes point out that you just’ve traveled 100 meters ahead, however the GPS says you’re now in Texas, the algorithms know to port management over to the [gyroscope].”
In keeping with Paniccia, Anello’s newest system was designed particularly for unmanned underwater and floor autos working within the vastness of the open ocean, the place no landmarks exist to help navigation. “Within the ocean, every part seems to be the identical,” he says. Within the maritime house, during which currents make navigation extra sophisticated than monitoring location on land or within the air, Paniccia says the Anello system’s location error is extra like 3 or 4 p.c of the space traveled.
Paniccia says he envisions a future the place miniaturized gyroscopes could possibly be embedded into handheld gadgets for firefighters, permitting them to navigate by smoke-filled buildings the place stairways and exits are not seen. “It would basically be an digital compass,” he says.
