Of the numerous applied sciences invented over the previous half century, high-temperature superconductors are among the many most promising and but additionally probably the most irritating. Many years of analysis has yielded an assortment of supplies that superconduct at temperatures as excessive as -140 °C (133 kelvins) at ambient strain. And but industrial purposes have been elusive.
Now, although, a few developments may lastly push high-temperature superconductors into industrial use. One is the supply, at comparatively reasonable value, of copper-oxide-based superconducting tape, which is being produced by just a few firms for startups working on tokamak fusion reactors. The reactors use the superconducting tape, which is usually made from yttrium barium copper oxide, in highly effective electromagnets. The opposite improvement entails a distinct group of startups which might be utilizing the tape to construct electric motors with very excessive power-to-weight ratios, primarily to be used in electric aircraft.
Amongst that latter group of startups is Hinetics, shaped in 2017 to commercialize analysis led by Kiruba Haran on the University of Illinois Urbana-Champaign. This previous April, the corporate examined a prototype motor outfitted with superconducting rotor magnets. Based on Haran, the exams, which included spinning a propeller in a laboratory setup, validated key elements of the corporate’s designs for superconducting motors that may function at energy ranges of 5 and 10 megawatts. Such ranges could be excessive sufficient to energy a regional passenger airliner with a number of motors. The work was funded partially by a grant from the Advanced Research Projects Agency–Energy (ARPA-E).
“HTS [high temperature superconductors] are having a second, as a result of the prices are coming down quickly, pushed by all of the work on fusion,” Haran says. “Lots of people are ramping up manufacturing, and new startups, and new capabilities, are coming into the market.”
Hinetics is one in every of maybe a dozen firms, giant and small, attempting to make use of high-temperature superconductors to construct extraordinarily environment friendly motors with very excessive power density. These embody aerospace big Airbus, which is engaged on a superconducting airliner below a program referred to as ZEROe, in addition to Toshiba, Raytheon, and U.Ok. startup HyFlux. Nonetheless, Hinetics is taking an uncommon strategy.
Widespread approaches to constructing a superconducting machine use the superconducting materials for both the rotor or stator coils, or each. Sometimes, the coils are cooled with a liquid or gasoline saved at a sufficiently low temperature by an exterior cryocooling system. The fluid cools the superconducting coils by convection, by bodily flowing by way of warmth exchangers involved with the coils and carrying away warmth because it does so. The system has been used efficiently in some experimental motors and turbines, but it surely suffers from a number of basic issues. A giant one is the necessity to flow into the cooling fluid by way of the rotor coils, that are embedded in a rotor meeting that’s spinning at maybe hundreds of revolutions per minute. One other downside is that this strategy requires an advanced cryocooling system that features pumps, seals, gaskets, pipes, insulation, a rotary coupling that transfers the cryogen into and out of the rotor, and different elements that may fail and that add appreciable weight.
The rotor coils in an experimental Hinetics electric motor are made from a high-temperature superconductor. They’re cooled by a cryocooler that runs axially down the middle of the motor. The rotor meeting and the cryocooler are enclosed inside a vacuum vessel.Hinetics
Hinetics’s Revolutionary Concept: Spin the Cryocooler
Hinetics’s system, then again, makes use of a self-contained cryocooler that’s sufficiently small to be connected to the rotor, and which spins together with it, eliminating the necessity to move fluids into and out of a spinning vessel. With this association, “you don’t should immerse the superconductor into the fluid,” notes Laurent Pilon, an affiliate director for know-how at ARPA-E. As an alternative, “there’s a cryocooler, and a chilly connection, and also you pull out the warmth from the superconducting magnetic coils to the cryocooler, performing a refrigeration cycle. The wonder right here is that it simplifies every little thing as a result of now you simply have the cryocooler that spins with the shaft.”
On this configuration, the rotor meeting, together with the coils, is cooled by conduction reasonably than convection. The rotor is put in inside a vacuum chamber. Warmth from the superconducting magnet meeting is transferred by way of a “thermal bus,” which is mainly only a disk-shaped copper construction that conducts the warmth to the cryocooler, which is connected to the opposite aspect of the copper disk.
One of many challenges, Haran says, was discovering a cryocooler small and light-weight sufficient to spin at excessive charges and preserve functioning whereas doing so. For its proof-of-concept unit, the Hinetics group used an off-the-shelf Stirling-cycle cooler from Sunpower. It will possibly take away solely 10 watts of warmth from the rotor meeting however, on this configuration, that’s all that’s wanted to maintain the rotor coils superconducting, Haran says.
One potential disadvantage of the system is that, due to this comparatively low heat-removal capability, the cryocooler takes just a few hours to chill the superconducting magnet sufficiently to start out working. Future variations will cut back the interval wanted, based on Haran. And on the intense aspect, the low heat-removal charge means excessive effectivity, as a result of the cooler has simply sufficient energy to take care of the low temperatures wanted throughout operation, and never a lot extra capability.
To offer electric power to the spinning cryostat and rotor magnets the prototype used a slip ring. However future variations of the motor will use a wi-fi system, probably primarily based on inductive coupling, Haran says.

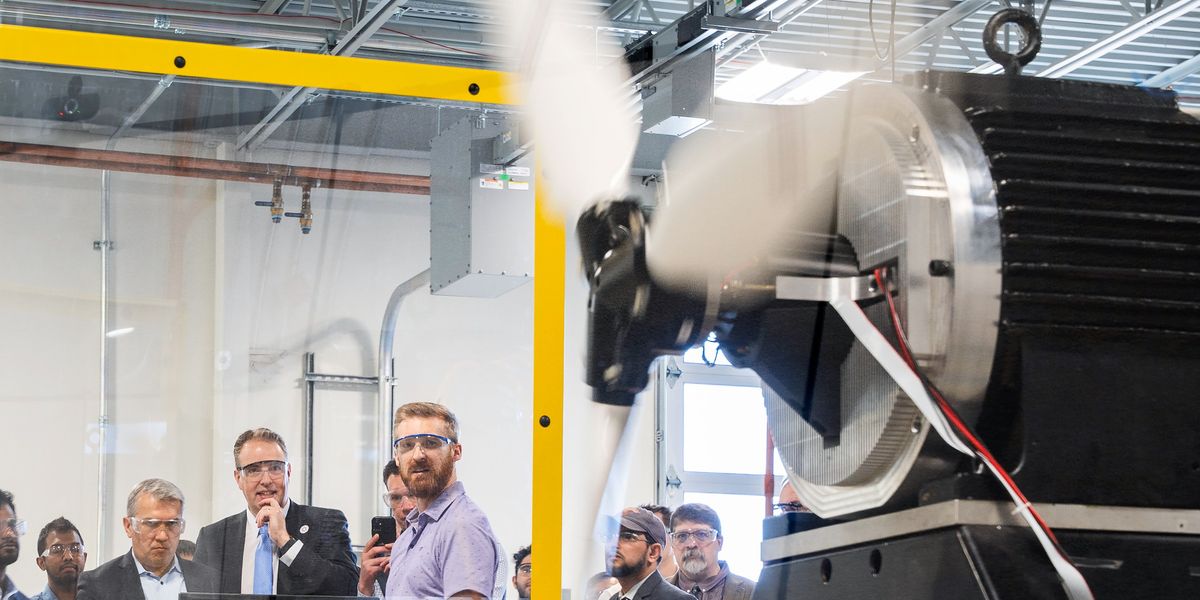

Exams of Hinetics’s superconducting motor this previous April validated the fundamental design and cleared the way in which for development of extra highly effective items.Hinetics
Functions on Ships Are Additionally Potential
He opted to not make the stators superconducting, as a result of in a typical configuration the stator is energized by an alternating-current (AC) waveform. Superconductors are solely utterly lossless for direct current. So the appliance of AC to superconducting coils within the stator would end in energy losses that will require one other cooling system to take away warmth from the stator.
Haran figures it’s not needed. With superconductors simply within the rotor coils, the motor will obtain efficiencies within the vary of 98 to 99.5 p.c, which is about 4 or 5 proportion factors increased than what’s realistically doable with a permanent-magnet synchronous motor. Haran additionally insists that the superconducting design would attain this excessive effectivity with none discount in energy density, a mix that’s onerous to realize in a traditional motor.
4 or 5 proportion factors may not appear to be rather a lot, however it might matter in typical aviation purposes, Pilon says, particularly when coupled with increased energy density. On its web site, Hinetics claims that its motor has a steady particular energy of 10 kilowatts per kilogram, which might put the machine among the many most power-dense items obtainable, on a continuous-power foundation. Based on Haran, the following technology of the superconducting motor will obtain 40 kW/kg, which might be far increased than something commercially obtainable.
Though aviation is the preliminary goal, Haran sees potential purposes in ship propulsion, the place the motor’s excessive volumetric energy density could be a draw. “What’s actually thrilling is that we’re seeing a transformational new know-how grow to be sensible,” he says. “When you get to megawatts and low pace, wherever you want excessive torque, this could possibly be very fascinating.”
